|Max. load capacity||8.5 t|
|Max. jib radius||65.0 m|
|Cross Section A||mm²||35|
|Max. length S2 + S3||m||151|
|min. required generator power||kVA||136|

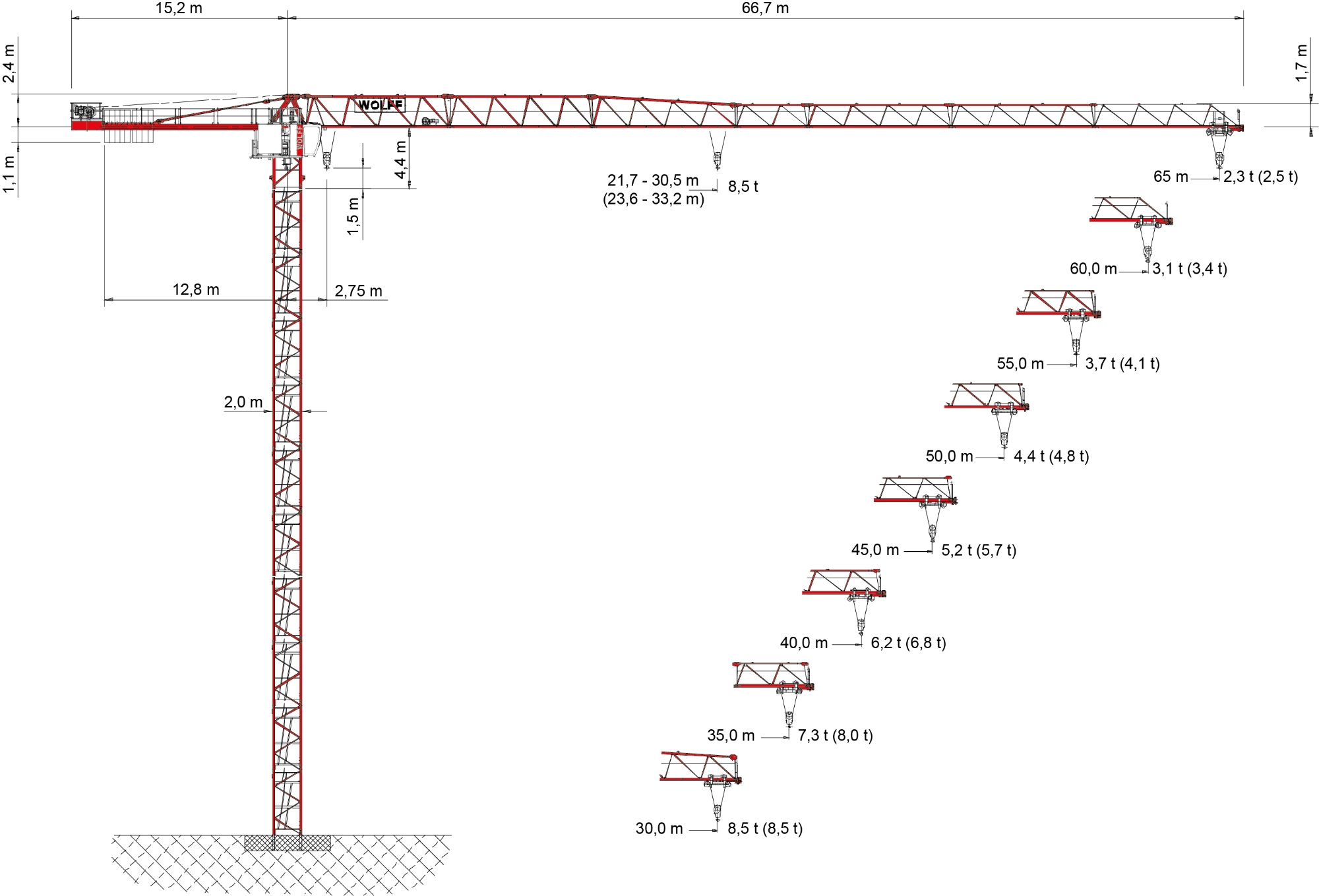

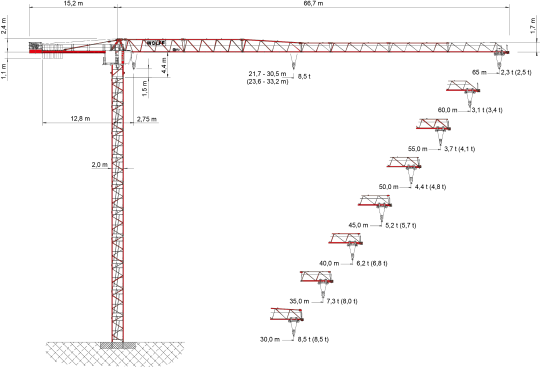

30 m basic jib with trolley gear. Extensions up to 65 m radius in 2.5 m steps. Patended lower cord connection for low-tool assembly. Slewing frame with driver’s cabin, control cabinet, two slewing gears, ball race bearing with central lubrication unit and slipring system. Counterjib with hoisting platform and counterweights.
All drives frequency controlled squirrel cage motors, fully thermal protected. Hoisting winches Hw 845 FU. Two slewing gears with electri-cally operated weathervaning device. Automatic windforce compensation controls. Trolley gear.
Multivoltage equipment for supplies from 380 V to 460 V at 50 / 60 cycles. Electronic safety crane controls with bus technology. Incremental absolute encoders for all operating movements. Electronic load measuring device at basic jib section. Multilingual graphic display showing informa-tion to operator, both operational and diagnostics.
Electronic overload protection with WOLFF Boost. Increased load moment limitation due to automatic hoist speed reduction. Menu guided setting of overload protection system and of all limiters from operator’s cabin. Working space limiter. Anti-collision interface. WOLFF Link data transfer hoist wich optional. Trolley rope breakage safety device.
Tower Elements, Climbing Device
Tower configuration of WOLFF system tower elements. WOLFF slug bolt connection. Detachable hydraulic WOLFF system climbing device KWH 20.3.
Undercarriage UW, Mobile Cross Frame KRF
WOLFF undercarriage UW can be used with gauge from 6.0 up to 8.0 m or mobile cross frame KRF with 6.0 m to 10.0 m.
Cross Frame Elements KRE, Cross Frame KR
For stationary installation. Cross frame elements KRE can be converted to undercarriage UW. Cross frames KR with 4.6 m to 10.0 m, can be converted to KRF.
Power Requirements and hook paths (Slewing part)
67 kVA (Hw 845 FU), hook path 190 m in 2-fall operation.
