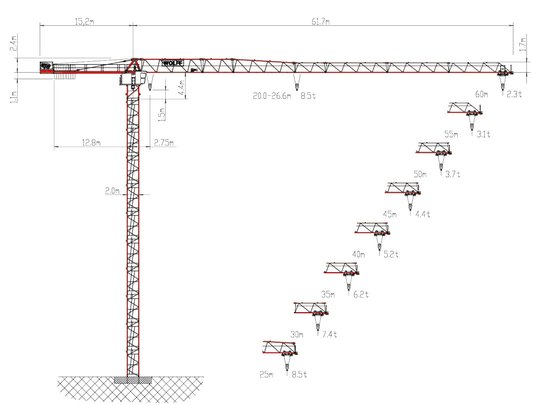

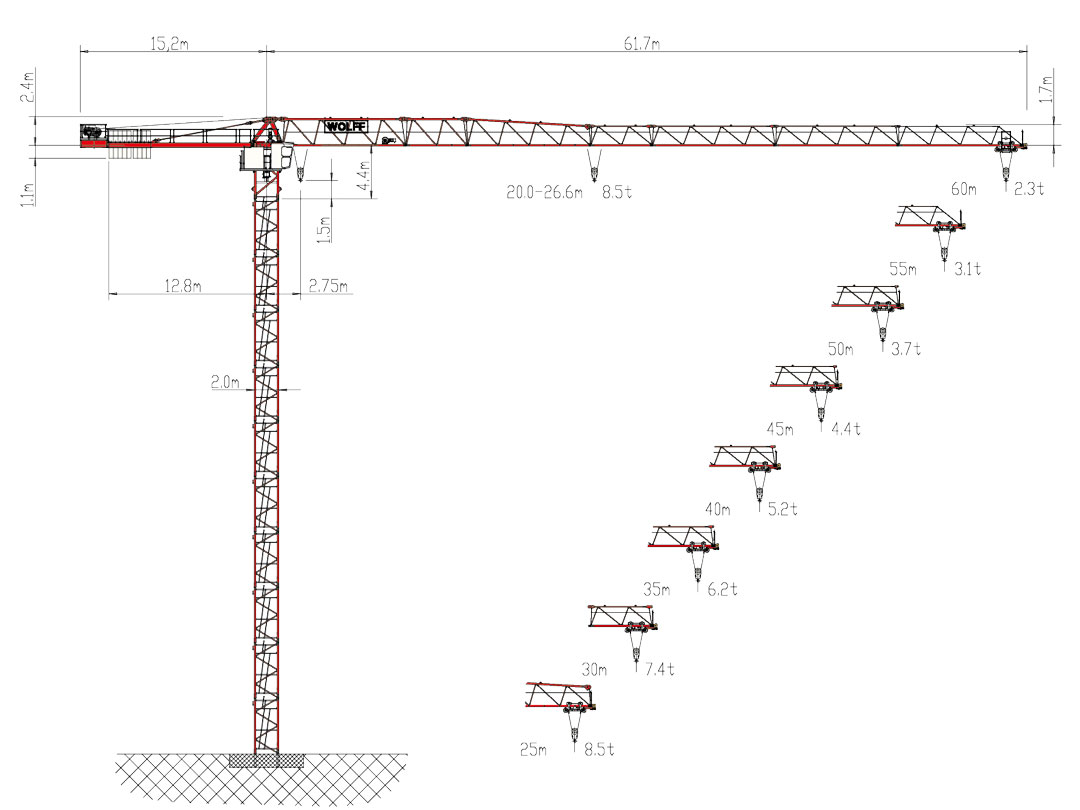

WOLFF 6023.8 Clear



BGL classificationC.0.10.0180
NormsEN 14439
Max. load capacity8.5 t
Max. jib radius60.0 m
Rope falls2
Hoisting gear:
Type845 FU875 FU
PowerkW4575
CurrentA88143
Crane:
Operating currentA90130
Peak currentA152221
Supply line:
Cross Section Amm²35 | 5050 | 70
Max. fuseA100 | 100125 | 125
Max. length S2 + S3m158 | 226155 | 217
Connected powerkVA6290
min. required generator powerkVA124180

Main Components


25 m basic jib with trolley gear. Extensions up to 60 m radius in 2,5 m steps. Slewing frame with driver’s cabin, control cabinet, slewing gear, ball race bearing with central lubrication unit and slipring system. Counterjib with hoisting platform and counterweights.


Drive Technique


All drives frequency controlled squirrel cage motors, fully thermal protected. Hoisting winches Hw 845 FU or Hw 875 FU.
Slewing gear with electrically operated weathervaning device.
Automatic windforce compensation controls. Trolley gear.


Electrical Equipment


Multivoltage equipment for supplies from 380 V to 460 V at 50/60 cycles. Electronic safety crane controls with bus technology. Incremental absolute encoders for all operating movements. Electronic load measuring device at basic jib section. Multilingual graphic display showing information to operator, both operational and diagnostics.


Safety Devices


Electronic overload protection system. Increased load moment
limitation by automatically hoisting speed reduction. Menu guided setting of overload protection system and of all limiters from operators cabin. Working space limiter. Anti collision interface. Trolley rope breakage safety device.


Tower Elements, Climbing Device


Tower configuration of WOLFF system tower elements. WOLFF slug bolt connection. Detachable hydraulic WOLFF system climbing device KWH 20.3.


Undercarriage UW


WOLFF system undercarriage UW can be used with gauge from 5,0 up to 8,0 m.


Cross Frame Element KRE, Cross Frame KR


For stationary installation. KRE elements can be modified to UW.


Power Requirements and hook paths (Slewing part)


62 kVA (Hw 845 FU), hook path 190 m in 2-fall operation.
90 kVA (Hw 875 FU), hook path 460 m in 2-fall operation.
