WOLFF 355 B



BGL classificationC.0.11.0355
NormsEN 14439
Max. load capacity28.0 t
Max. jib radius60.0 m
Rope falls1 | 2
Hoisting gear:
Type28110 FU28132 FU
PowerkW110132
CurrentA220242
Luffing gear:
Type1575 FU
PowerkW75
CurrentA150
Crane:
Operating currentA280295
Peak currentA337407
Supply line:
Cross Section Amm²95 | 120120 | 185
Max. fuseA200 | 200315 | 315
Max. length S2 + S3m208 | 263226 | 348
Connected powerkVA194205
min. required generator powerkVA485513

Main Components

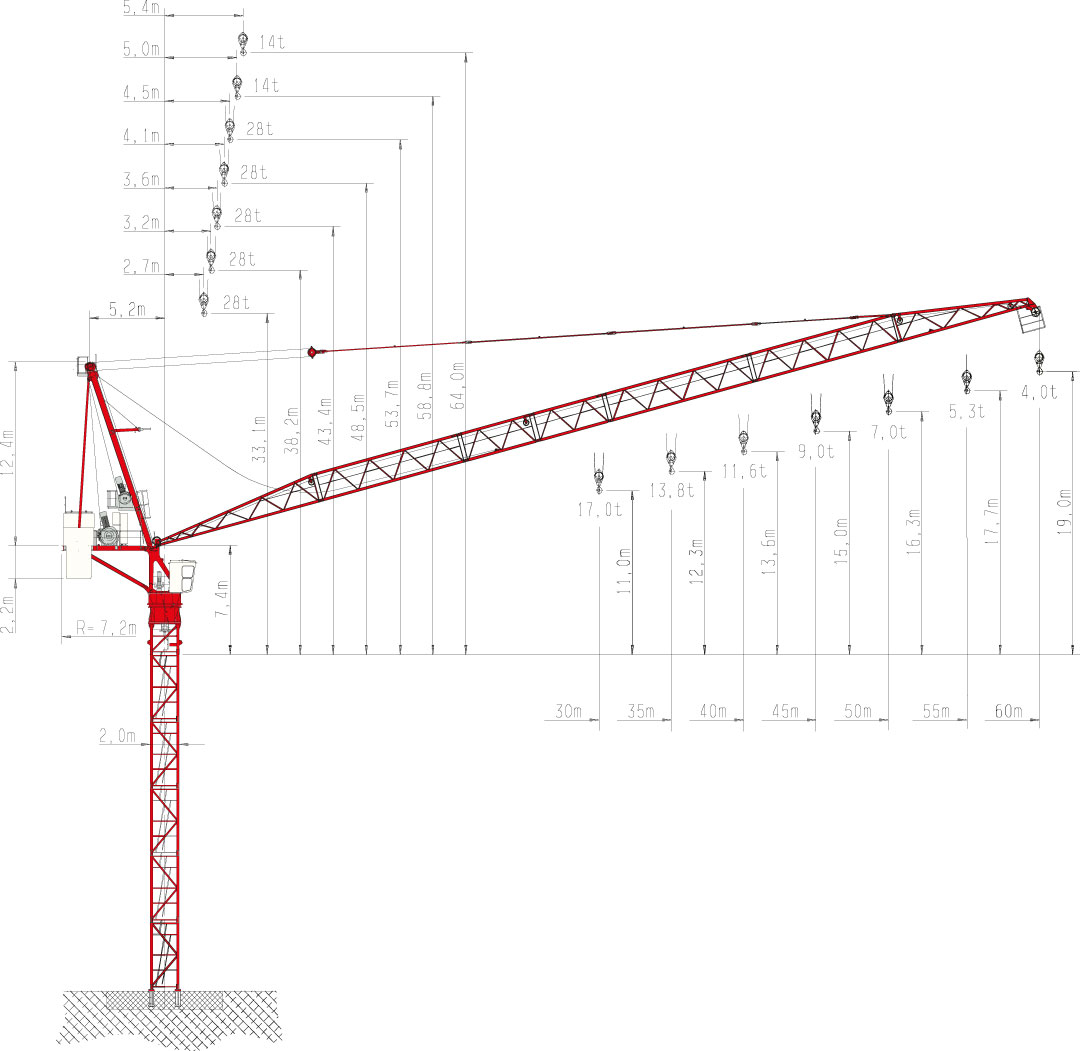

30 m basic jib. Extensions up to 60 m radius in 5 m steps. Towertop with luffing winch. Slewing frame with driver’s cabin, control cabinet, slewing gear, ball race bearing with central lubrication unit and slipring system. Counterjib with hoisting winch and counterweights.


Drive Technique


All drives frequency controlled squirrel cage motors, fully thermal protected. Hoisting winch Hw28110FU / Hw28132FU. Slewing gear with electrically operated weathervaning device. Automatic windforce compensation controls. Luffing winch Ew 1575 FU.


Electrical Equipment


Multivoltage equipment for supplies from 380 V to 460 V at 50 / 60 cycles. Electro nic safety crane controls with bus technology. Incremental absolute encoders for all operating movements. Electronic load measuring device. Multilingual graphic display showing information to operator, both operational and diagnostics.


Safety Devices


Electronic overload protection system. Increased load moment
limitation by automatically hoisting speed reduction. Menu guided setting of overload protection system and of all limiters from operators cabin. Working space limiter. Anti collision interface. Electronic controlled level luffing.


Tower Elements, Climbing Device


Tower configuration of WOLFF system tower elements. WOLFF slug bolt connection. Detachable hydraulic WOLFF system climbing device KWH 20.6.


Undercarriage UW


WOLFF system undercarriage UW can be used with gauge from 6,0 up to 8,0 m.


Cross Frame Element KRE, Cross Frame KR


For stationary installation. KRE elements can be modified to UW.


Power Requirements and hook paths ( Slewing part )


194 kVA with Hw 28110 FU, hook path 460 m in 2-fall operation.
205 kVA with Hw 28132 FU, hook path 460 m in 2-fall operation.

Technical information (pdf)
CAD data substructures (dwg)
CAD data tower elements (dwg)
CAD data WOLFF 355 B (dwg)
Datasheet WOLFF 355 B (pdf)
WOLFF Boost (pdf)
