WOLFF 700 B



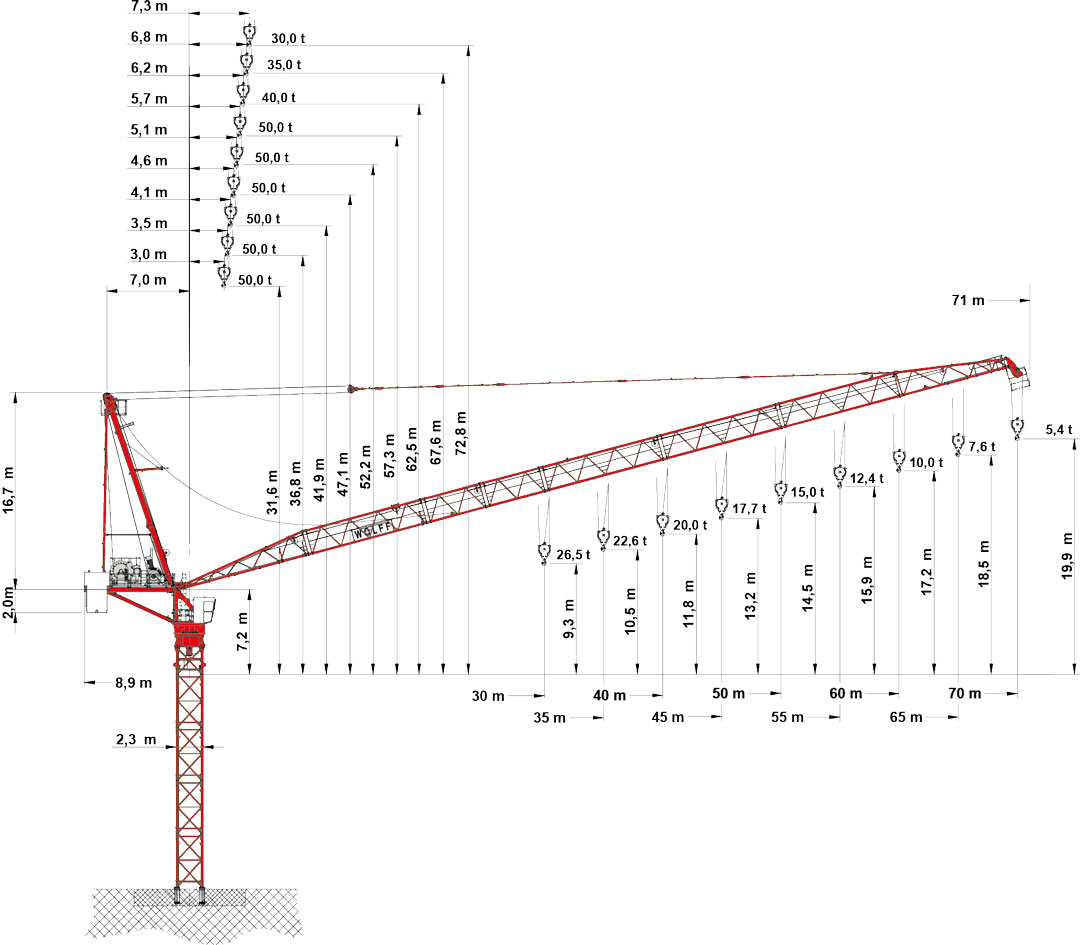

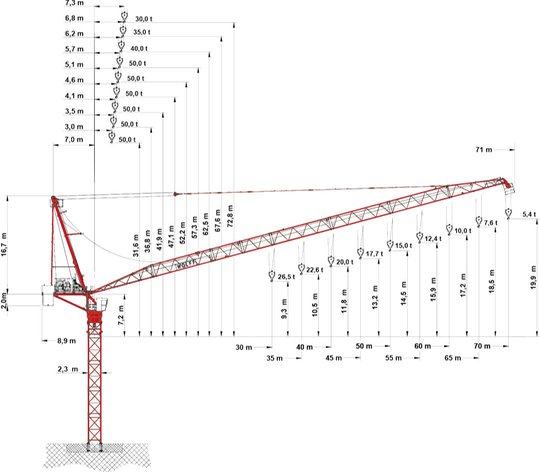

BGL classificationC.0.11.0710
NormsEN 14439
Max. load capacity50.0 t
Max. jib radius70.0 m
Rope falls1 | 2 | 3
Hoisting gear:
Type40132 FU
PowerkW132
CurrentA242
Luffing gear:
Type12110 FU
PowerkW110
CurrentA200
Crane:
Operating currentA339
Peak currentA455
Supply line:
Cross Section Amm²120 | 185
Max. fuseA355 | 355
Max. length S2 + S3m202 | 312
Connected powerkVA235
min. required generator powerkVA588

Main Components


30 m basic jib, extensions up to 70 m in 5 m steps, tower top with access, slewing frame with cabin, two slewing gears, ball race bearing with central lubrication unit and slip ring system.
Counter jib with hoist and luffing winch, switch cabinet and
counterweights.


Drive Technique


All drives frequency controlled squirrel cage motors, fully thermal protected. Hoisting winch Hw 40132 FU. Two slewing gears with electrically operated weathervaning device. Automatic windforce compensation controls. Luffing winch Ew 12110 FU.


Electrical Equipment


Multivoltage equipment for supplies from 380 V to 460 V at 50/60 cycles. Electronic safety crane controls with bus technology. Incremental absolute encoders for all operating movements. Electronic load measuring device. Multilingual graphic display showing information to operator, both operational and diagnostics.


Safety Devices


Crane is complete with electronic overload protection system.
Increased load moment limitation due to automatic hoist speed reduction. Menu guided setting of overload protection system and of all limiters from operator’s cabin. Working space limiter, anti-collision interface. Electronic controlled level luffing.


In series with


Teleservice module and wind indicator.


Tower Elements, Climbing Device


Tower configuartion of WOLFF system tower elements. WOLFF slug bolt connection. Detachable hydraulic WOLFF system climbing device KWH 23.


Undercarriage, Crossframe


As travelling version on WOLFF system KRF with gauge of 8,0 m. For stationary installations on KR series. Alternative on foundation anchors.


Power Requirements and hook paths (Slewing part)


235 kVA (Hw 40132 FU). Hook path – see table of mechanisms.
