WOLFF 5014 city



BGL classificationC.0.10.0080
NormsEN 14439
Max. load capacity6.0 t

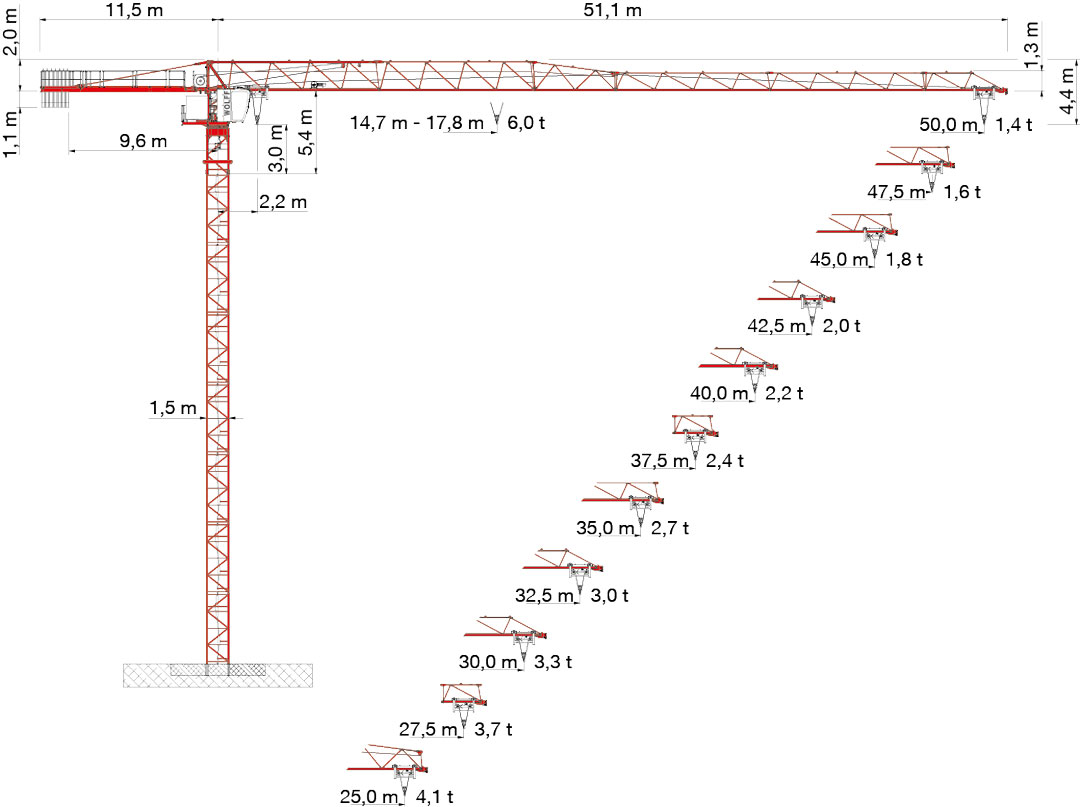

Max. jib radius50.0 m
Rope falls2
Hoisting gear:
Type628.1 FU
PowerkW28
CurrentA52
Crane:
Operating currentA49
Peak currentA75
Supply line:
Cross Section Amm²10 | 16
Max. fuseA50
Max. length S2 + S3m98 | 156
Connected powerkVA34
min. required generator powerkVA68

Main Components

25 m basic jib with hoisting winch and trolley gear. Extensions up to 50 m radius. Slewing frame with slewing gear, ball race bearing with central lubrication unit and slipring system. Counterjib with counterweights. Control cabinet station with control cabinet optional with driver’s cabin or remote
control with display.

Drive Technique

All drives frequency controlled squirrel cage motors, fully
thermal protected. Hoisting winch Hw 628.1 FU. Slewing gear
with electrically operated windvaning device. Automatic windforce compensation controls. Trolley gear.

Electrical Equipment

Equipment for supplie from 380 V - 460 V at 50 / 60 cycles.
Electronic crane controls. Incremental absolute encoders for all
operating movements. Electronic load measuring device at jib section. Crane cabin with multilingual graphic display showing
information to operator, both operational and diagnostics.
Remote control with display. WOLFF Boost function for 10% more load carrying capacity.

Safety Devices

Electronic overload protection system. Menu guided setting of
overload protection system and of all limiters. Working space
limiter. Anti collision interface. Trolley rope breakage safety
device.

Tower Elements, Climbing Device

Tower configuration of WOLFF system tower elements. WOLFF slug bolt connection. Detachable hydraulic climbing device KWH 15.2 or internal climbing device KSH 15.

Undercarriage UW, traveling cross frame KRF

WOLFF undercarriage UW with gauge from 3.8 m up to 8.0 m or traveling cross frame KRF with gauge from 6.0 m - 10.0 m.

Cross Frame Element KRE, Cross Frame KR

For stationary installation. KRE elements can be modified to UW. Cross frames KR can be modified to traveling cross frames KRF.

Power Requirements and hook paths (Slewing part)

37 kVA ( Hw 628.1 FU), hook path 190 m in 2-fall operation.

Technical information (pdf)
CAD data substructure (dwg)
CAD data tower elements (dwg)
CAD data WOLFF 5014 city (dwg)
Datasheet WOLFF 5014 city (pdf)
WOLFF Boost (pdf)
