|Max. load capacity||20.0 t|
|Max. jib radius||90.0 m|
|Cross Section A||mm²||50 | 70|
|Max. length S2 + S3||m||162 | 227|
|min. required generator power||kVA||245|

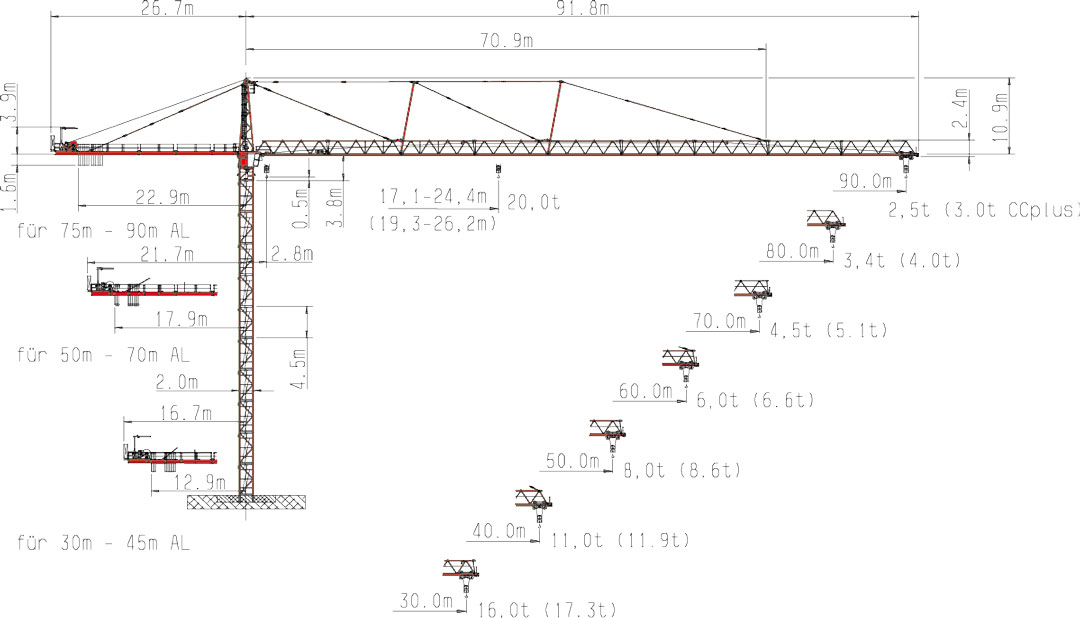

30 m basic jib with trolley gear. Extensions up to 90 m radius.
Towertop. Slewing frame with driver’s cabin, two slewing gears, ball race bearing with central lubrication unit and slipring system. Counterjib with machinery platform, control cabinet and counterweights.
All drives frequency controlled squirrel cage motors, fully thermal protected. Hoisting winch Hw 2075 FU. Two slewing gears with electrically operated weathervaning device. Automatic windforce compensation controls. Trolley gear.
Multivoltage equipment for supplies from 380 V to 460 V at
50 / 60 cycles. Electronic crane controls CCplus. Incremental
absolute encoders for all operating movements. Electronic load
measuring device at basic jib section. Multilingual graphic display showing information to operator, both operational and diagnostics.
Electronic overload protection system. CCplus allows increased load moment at automatically reduced operating speeds only.
Menu guided setting of overload protection system and of all limiters from operators cabin. Working space limiter. Anti collision interface. Trolley rope breakage safety device.
Tower Elements, Climbing Device
Tower configuration of WOLFF system tower elements. WOLFF slug bolt connection. Detachable hydraulic WOLFF system climbing device KWH 20.6.
WOLFF system undercarriage UW can be used with gauge from 8,0 up to 12,0 m.
Cross Frame Element KRE, Cross Frame KR
For stationary installation. KRE elements can be modified to UW.
Power Requirements and hook paths (Slewing part)
98 kVA ( Hw 2075 FU), hook path 400 m in 2-fall operation.
