WOLFF 6015.6 Clear


BGL classificationC.0.10.0140
NormsEN 14439
Max. load capacity6.2 t
Max. jib radius60.0 m
Rope falls2
Hoisting gear:
Type628 FU
Operating currentA68
Peak currentA111
Supply line:
Cross Section Amm²25 | 35
Max. fuseA80 | 80
Max. length S2 + S3m154 | 216
Connected powerkVA47
min. required generator powerkVA94

Main Components

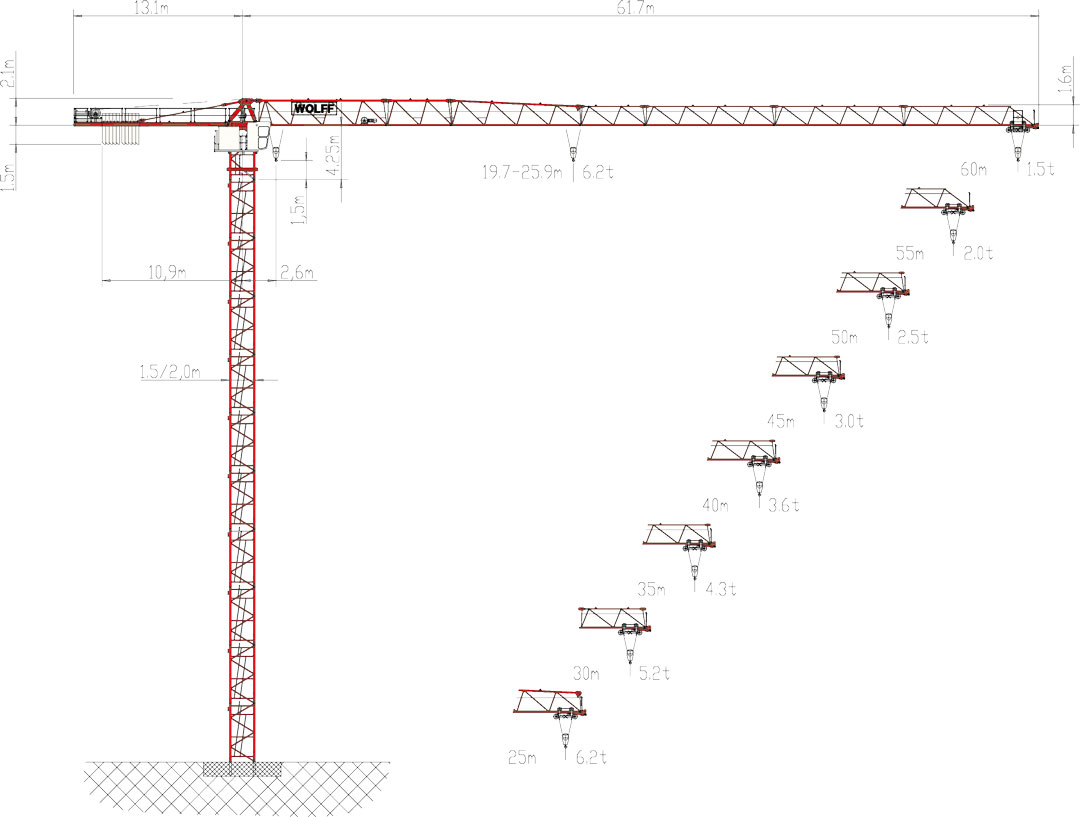

25 m basic jib with trolley gear. Extensions up to 60 m radius in 2,5 m steps. Slewing frame with driver’s cabin, control cabinet, slewing gear, ball race bearing with central lubrication unit and slipring system. Counterjib with hoisting platform and counterweights.

Drive Technique

All drives frequency controlled squirrel cage motors, fully thermal protected. Hoisting winch Hw 628 FU. Slewing gear with electrically operated weathervaning device. Automatic windforce compensation controls. Trolley gear.

Electrical Equipment

Multivoltage equipment for supplies from 380 V to 460 V at 50/60 cycles. Electronic safety crane controls with bus technology. Incremental absolute encoders for all operating movements. Electronic load measuring device at basic jib section. Multilingual graphic display showing information to operator, both operational and diagnostics.

Safety Devices

Electronic overload protection system. Increased load moment
limitation by automatically hoisting speed reduction. Menu guided setting of overload protection system and of all limiters from operators cabin. Working space limiter. Anti collision interface. Trolley rope breakage safety device.

Tower Elements, Climbing Device

Tower configuration of WOLFF system tower elements. WOLFF slug bolt connection. Detachable hydraulic WOLFF system climbing device KWH 20.3.

Undercarriage UW

WOLFF system undercarriage UW can be used with gauge from 5,0 up to 8,0 m.

Cross Frame Element KRE, Cross Frame KR

For stationary installation. KRE elements can be modified to UW.

Power Requirements and hook paths (Slewing part)

47 kVA (Hw 628 FU), hook path 190 m in 2-fall operation.
